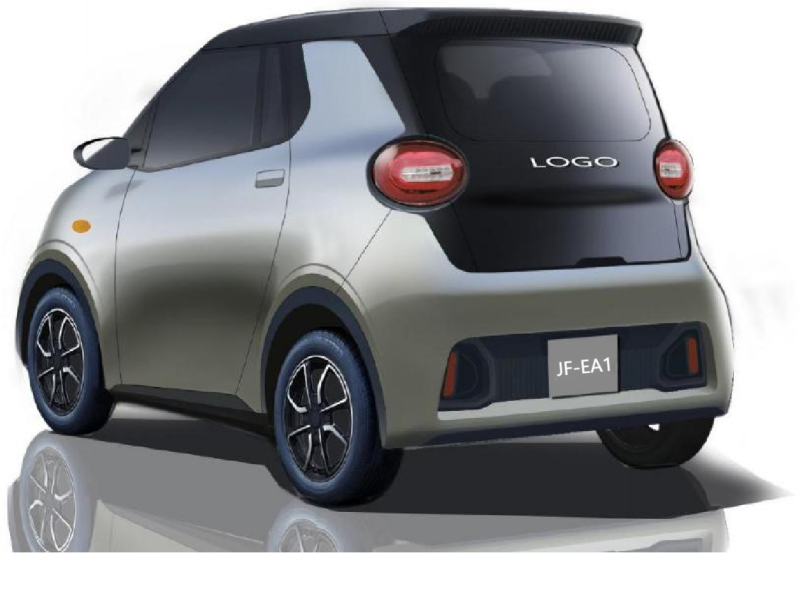

JF-EA1 Mini City SUV

Meet the needs of economical pure electric small SUVs for urban travel、LHD Or RHD

The vehicle is compact and easy to park
LHD and RHD that meet urban travel needs
Driving lightly
Low cost of use

Colores

JF-EA1 Mini City SUV

LHD and RHD that meet urban travel needs:The vehicle is compact and easy to park,Low cost of use:Driving lightly

JF-EA1 Mini City SUV Specs

Starting at: $ 12600

Dimensions

  • dimensions: 2890*1496*1565
  • Wheelbase: 1850MM
  • Wheels: Front
  • Weight (Curb Mass): ≤450(ithout battery weight)

Drive

  • Energy: Pure electric small SUV
  • Range: NEDC 150-200
  • Drive:
  • Transmission: Automatic transmission

Power

  • Battery type: Lithium iron phosphate battery
  • Battery Factory: JunFeng Automobile (OEM)
  • Charging: slow 7H (Reserved fast exit)
  • Battery capacity: 12

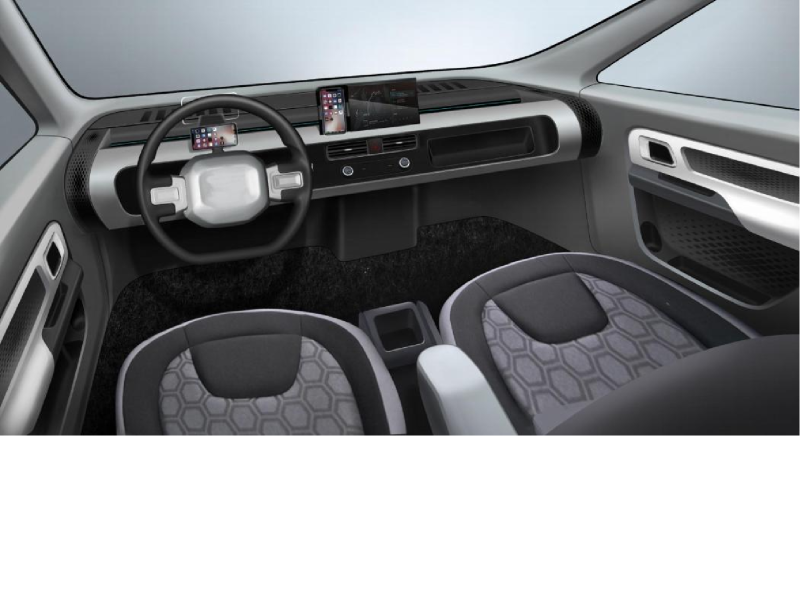

Cockpit

  • Seat: 2
  • Displays: 10.25
  • luggage volume: >160
  • Airbag: ok

Performance

  • High Speed: 80
  • Acceleration: 100
  • Intelligent assisted driving: No
  • Air conditioning: ok


JF-EA1 Mini City SUV

Vehicle configuration Rear motor rear drive High range Rear motor rear drive standard range
 Specification parameters
Type mini SUV  mini SUV
Type of Energy BEV BEV
Length*Width*Height(mm) 2890*1496*1565 2810*1496*1565
Wheelbase(mm) 1850 1920
Body Structure Two door two seat hatchback Two door two seat hatchback
Maximum Speed(km/h) 80 50
Front Tread(mm) 1312 1312
Read Tread(mm) 1310 1310
Minimum Ground Clearance(mm) 135 125
Max Climbing(%) ≥30% ≥22%
Minimum turning radius(m) ≤4.5 ≤4.5
Trunk Volume(L) >160 >160
Curb Weight(kg) ≤450(Without battery weight) ≤450(Without battery weight)
GVW(kg) ≤600(Without battery weight) ≤600(Without battery weight)
 dynamical system
Maximum Power(kW) 15 8
Maximum torque(N·m) 81 /
Motor Type Permanent magnet synchronous motor Permanent magnet synchronous motor
Maximum Power of Rear Motor(kw) 15 8
Maximum Torque of Rear Motor(N.m) 81 /
Number of Driving Motors 1 1
Motor Layout rear mounted  rear mounted
Number of Gears 1 1
Trasmission Type Fixed gear ratio gearbox Fixed gear ratio gearbox
Driving type rear drive rear drive
Battery Lithium Iron Phosphate Lithium Iron Phosphate
NEDC(km) 150-200 150-200
Slow Charge Time(h) 7 7
Battery Cooling Mode forced air cooling forced air cooling
Battery capacity(kWh) 12 12
Battery Energy Density(Wh/kg) 175 175
底盘系统 Chassis system
Front  Suspension Type McPherson independent suspension McPherson independent suspension
Rear Suspension Type McPherson independent suspension McPherson independent suspension
Steering Type   Electric power assistance  Electric power assistance
Front Brake Type disc disc
Rear Brake Type drum drum
Parking Brake Type   Foot braking Foot braking
Front Tyre 155/65 R14 155/65 R13
Rear Tyre 155/65 R14 155/65 R13
ABS
Front /Rear Parking Sensor ●Rear parking radar ●Rear parking radar
Driving Assistance Image ●Rear View Camera ●Rear View Camera
Braking Energy Recovery System
Hill-start Assist Control
多媒体/驾驶配置  Multimedia/Driving Configuration
IVI ●10.25 inch ●10.25 inch
OBD
Multimedia/Charging port
Number of USB/Type-C ●2 in the front row ●2 in the front row
Number of Speakers ●2 horns(door) ●2 horns(door)
AVAS
Wheel material ● Aluminium ● Aluminium
Key Type ●remote key ● remote key
PEPS-Start ● button start ●button start
Ext Rearview Mirror Function ● Manual adjustment ● Manual adjustment
Central Door Lock
Steering Wheel Material  plastics plastics
Steering Wheel Position Adjustment ● Manual adjustment up and down ● Manual adjustment up and down
Shift Mode ●column shift ●column shift
Reading Lamp
Front/Rear Electric Window
Int Rearview Mirror Function ●manual ● manual
A/C Control Mode ●Manual Air Conditioning ●Manual Air Conditioning
Low Beam Type ●halogen ●halogen
High Beam type ●halogen ●halogen
High Brake Lamp
Brake Lamp
Rear Position Lamp
Side Reflex Reflector
Rear Reflex Reflector
Seat Fabric ●PU ●PU
Driver's Seat function ●Front and rear manual ad justment ●Front and rear manual adjustment
Front Seat ●Front and rear manual ad justment ●Front and rear manual adjustment
Front Seat Belt
Front Seat Belt Reminder
Remarks: Marking ● is the standard configuration,  Marking  - is the no configu  ation.
This specification is for reference only, please confirm with the actual vehicle of Dongfeng Motor Co., Ltd. Any changes to the information provided are subject to the latest version.
other  Secondary parameters
OEM customization  Wuhan Junfeng Automobile Co., Ltd.
